Kontajnerové riešenia
PV kontajnery
- Minimal lifetime of PV panels 25 years
- Minimal lifetime of batteries 8000 cycles = aprox. 10 years
- Another equipment parts minimal lifetime 30 years
- On ground mounting constructions as an Option
- Recycling possibility on parity DDP Košice SK
- Each container is fireproof and battery compartment is also separated with fireproof wall from other equipment
- Main power is delivered to production, from rest is the battery charged
- Possibility to connect external wall-box for charging cars – ABB Terra
- Each container contains router for high crypted VPN connection for management software (Internet connection need to be provided)
- Developed and designed in SLOVAKIA
- Produced in SLOVAKIA
- Our products are made from the latest and best technology provided by our partners
- We use latest LiFePO4 battery technology that is durable and has 25% better size to capacity ratio then traditional LiPol batteries
- Our inverter technology is latest with effectiveness 98,65% that is the best on the market
- Maximum looses of total system are only to 10% ( traditional PV solutions are 15-20%)
- Each of our solution has integrated latest surge protection to protect the container from lightnings and others types of electrical overvoltage
- For communication you can connect trough 2G/3G/4G and 5G or u can use 1Gbps ethernet connection to existing network
- Control and management system from ABB with propertial software from RASEMA

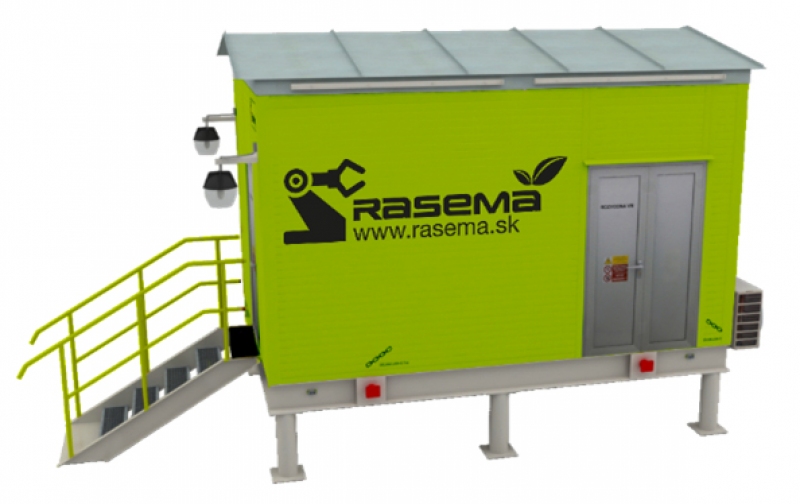

SMALL CONTAINER PV
- Small compact solution for islandn solution PV
- 400V AC 50Hz 3phases output on one connector
- Up to 1000V DC 20 MPPT inputs
- Total AC power 100kW /maximum 250A
- Total DC input 120kWp
- Total battery storage 30kWh
- 5 years warranty
MEDIUM CONTAINER PV
- Small compact solution for island solution PV
- 400V AC 50Hz 3phases output on two connectors
- Up to 1000V DC 44 MPPT inputs
- Total AC power 200kW /maximum 500A
- Total DC input 240kWp
- Total battery storage 60kWh
- 5 years warranty
LARGE CONTAINER PV
- Small compact solution for island solution PV
- 400V AC 50Hz 3phases output on four connectors
- Up to 1000V DC 80 MPPT inputs
- Total AC power 400kW /maximum 1000A
- Total DC input 480kWp
- Total battery storage 150kWh
- 5 years warranty

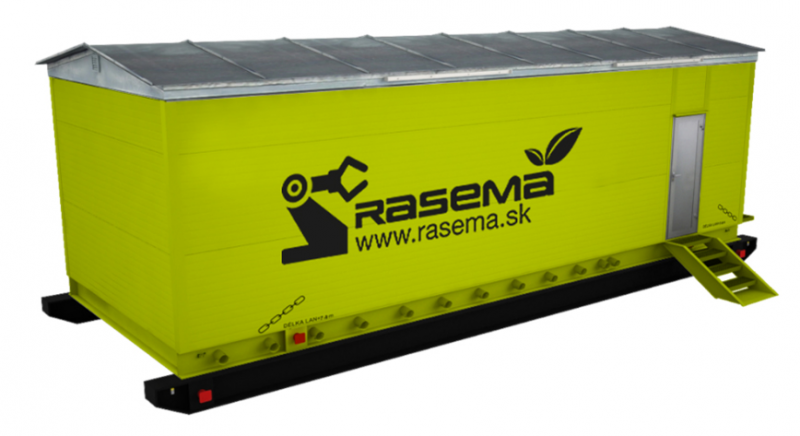

XLARGE CONTAINER PV
- Small compact solution for island solution PV
- 400V AC 50Hz 3phases output on four connectors
- Up to 1000V DC 160 MPPT inputs
- Total AC power 800kW /maximum 2000A
- Total DC input 960kWp
- Total battery storage 250kWh
- 5 years warranty
For more information contact us trough our formular.
